Built In PWM 5.2KW Solar Hybrid Inverter , Pure Sine Wave Solar Home Inverter

Product Categories
Shenzhen Zhongguanda Technology Co., Ltd.
Contact Now

Built In PWM 5.2KW Solar Hybrid Inverter , Pure Sine Wave Solar Home Inverter

Place of Origin : China

Brand Name : ZGDUPS

Model Number : NKH-5.2KW

Packaging Details : one set in a box

Supply Ability : 100000 Piece/Pieces per Month

Price : $320.00/pieces 1-9 pieces

Rated Power  : 5200W

AC Voltage  : 230VAC ± 5%

Max. Charge Current  : 100A

Surge Power  : 10400VA

Peak Eficiency  : 94%

Net Weight  : 10.2KG

Contact Now

Built In PWM 5.2KW Solar Hybrid Inverter , Pure Sine Wave Solar Home Inverter



Specification

Model NKH-5.2KW
Rated Power 5200W
System DC voltage 230VAC
Monitoring Option Wifi or Gprs
AC Voltage 230VAC±5%
Surge Power 10400VA
Peak Eficiency 94%
Tansfer Time 10ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform Pure Sine Wave
Max. PV Array Open Circuit Voltage 500VDC
Max. PV Array Power 6000W
Operating Voltage MPPT Range 120-450VDC
Battery Overcharge Protection 63VDC
Max. Solar Charge Current 100A
Max. AC Charge Current 100A
Max. Charge Current 100A
Dimension 100 x 300x 440mm
Net Weight 10.2KG
Communication Interface USB/RS232
Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature 0°C-55*C
Storage -15*C-60°C



Built In PWM 5.2KW Solar Hybrid Inverter , Pure Sine Wave Solar Home InverterBuilt In PWM 5.2KW Solar Hybrid Inverter , Pure Sine Wave Solar Home InverterBuilt In PWM 5.2KW Solar Hybrid Inverter , Pure Sine Wave Solar Home InverterBuilt In PWM 5.2KW Solar Hybrid Inverter , Pure Sine Wave Solar Home InverterBuilt In PWM 5.2KW Solar Hybrid Inverter , Pure Sine Wave Solar Home Inverter


Product Tags:

5.2KW Solar Hybrid Inverter



Built In PWM Solar Home Inverter



5.2KW Solar Home Inverter


Buy cheap Built In PWM 5.2KW Solar Hybrid Inverter , Pure Sine Wave Solar Home Inverter product

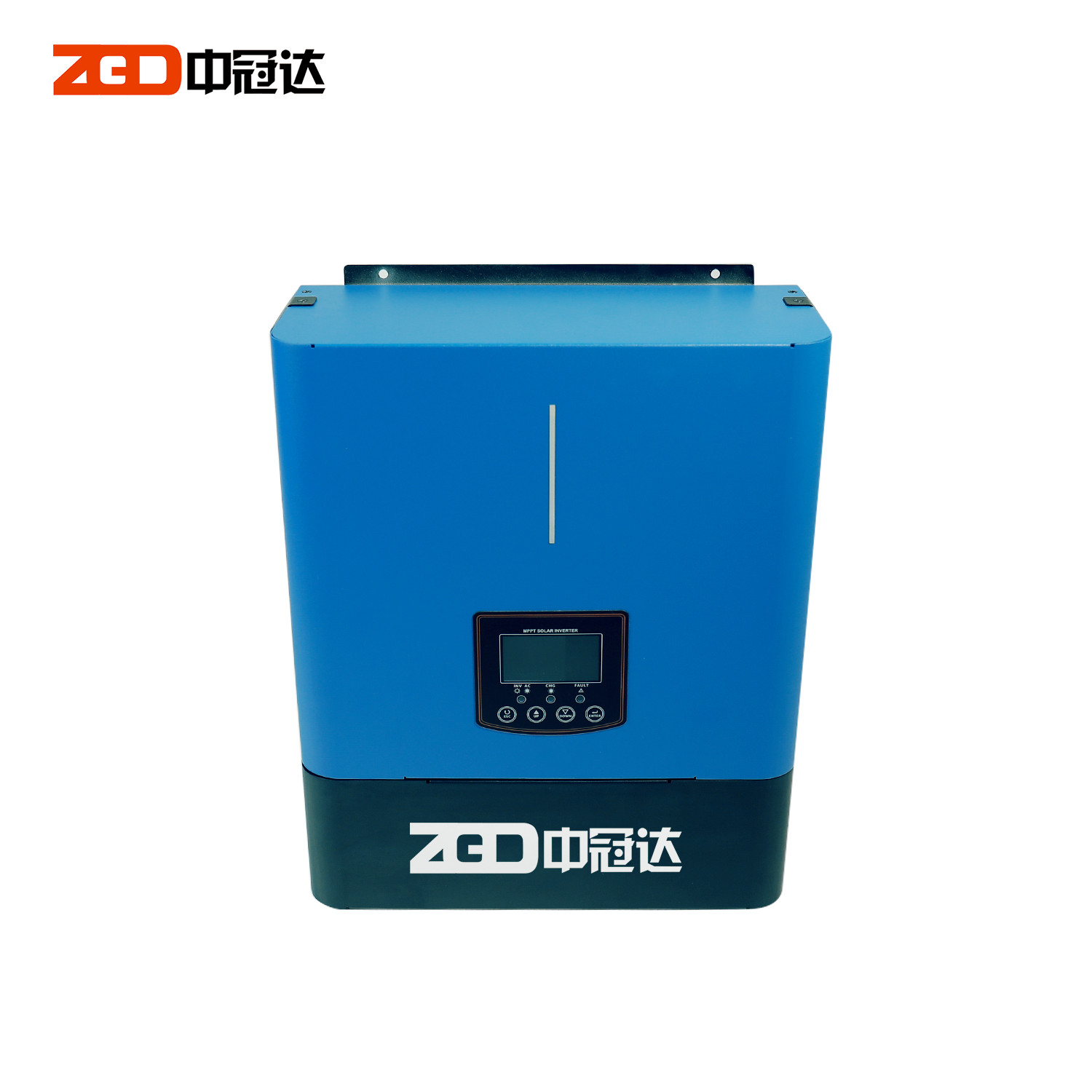

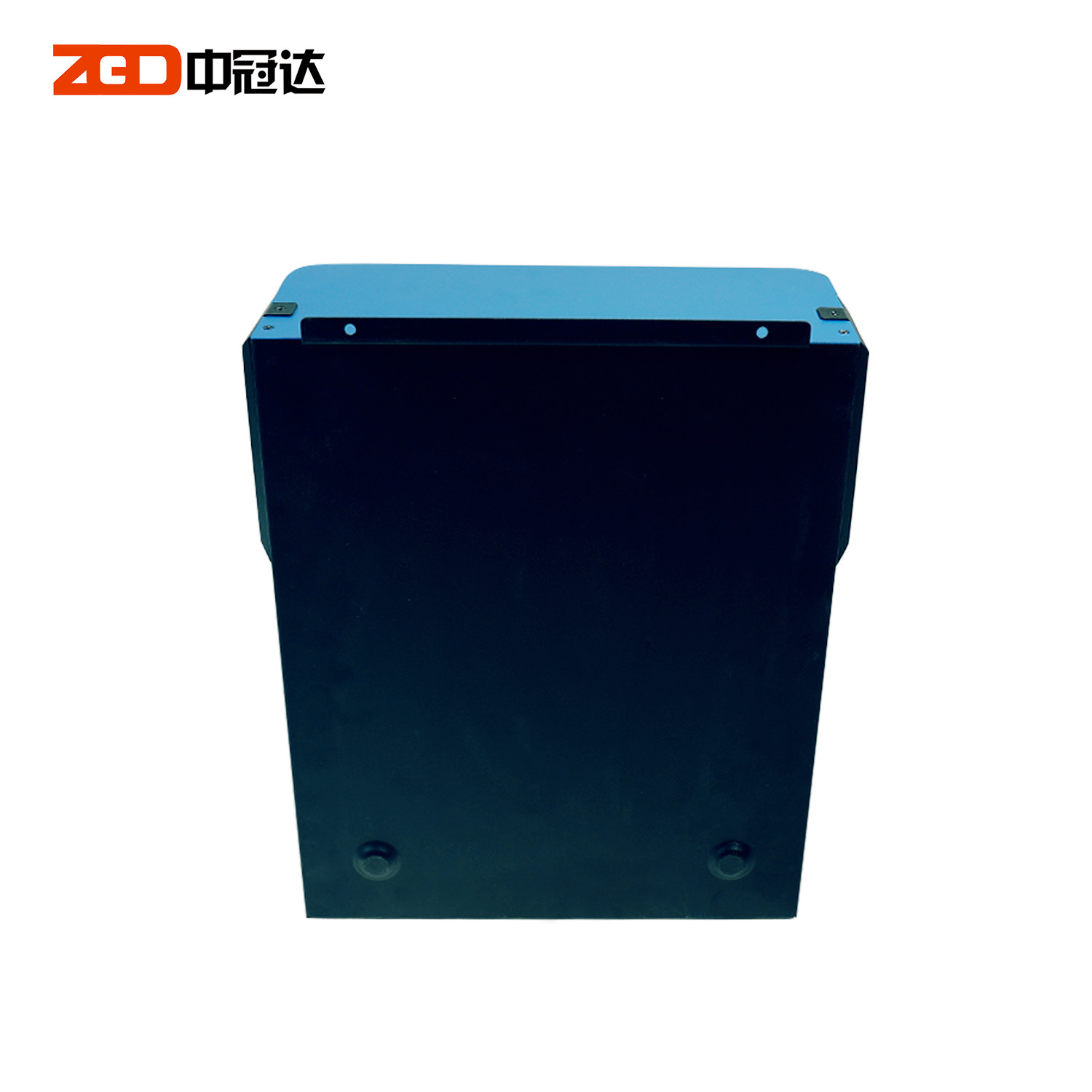

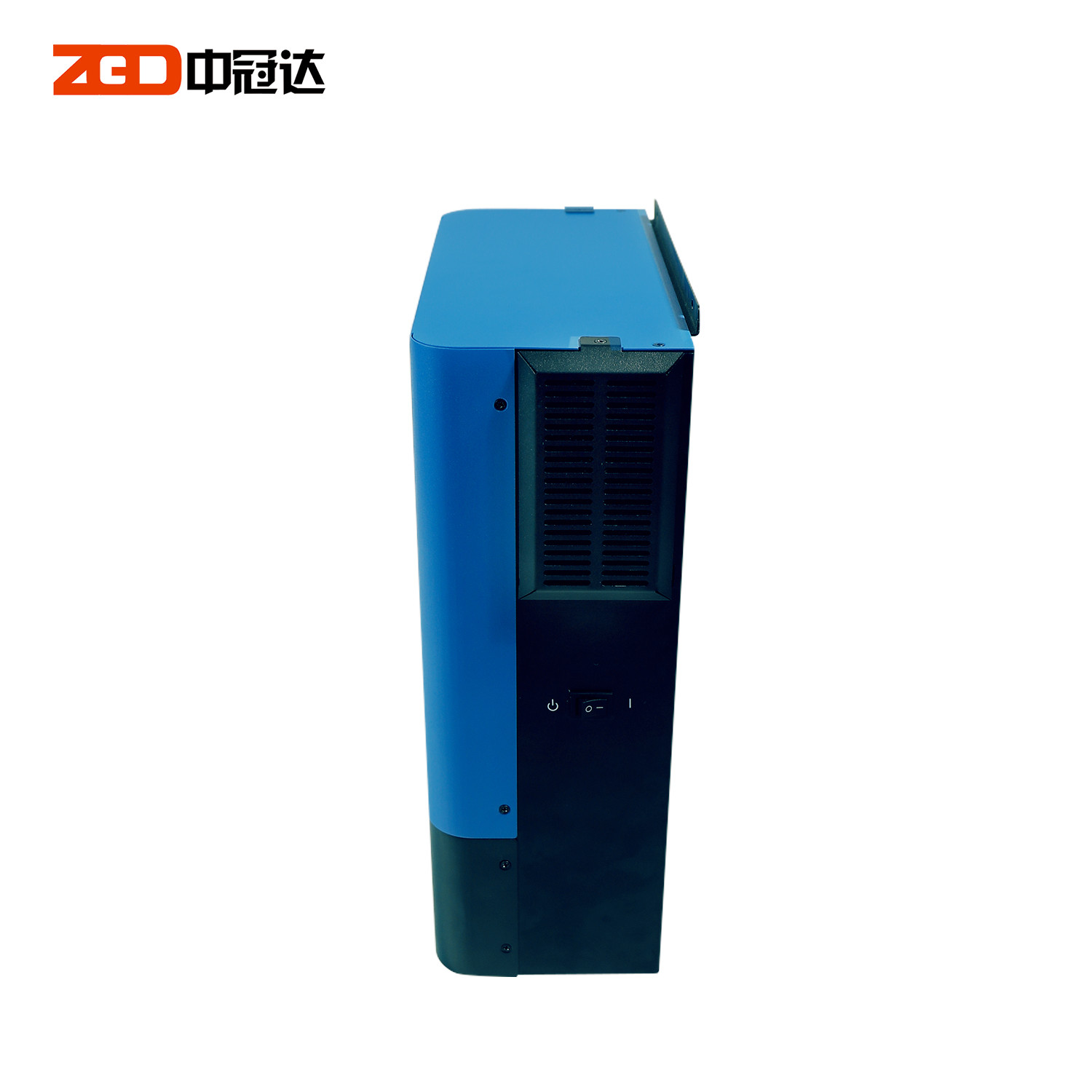

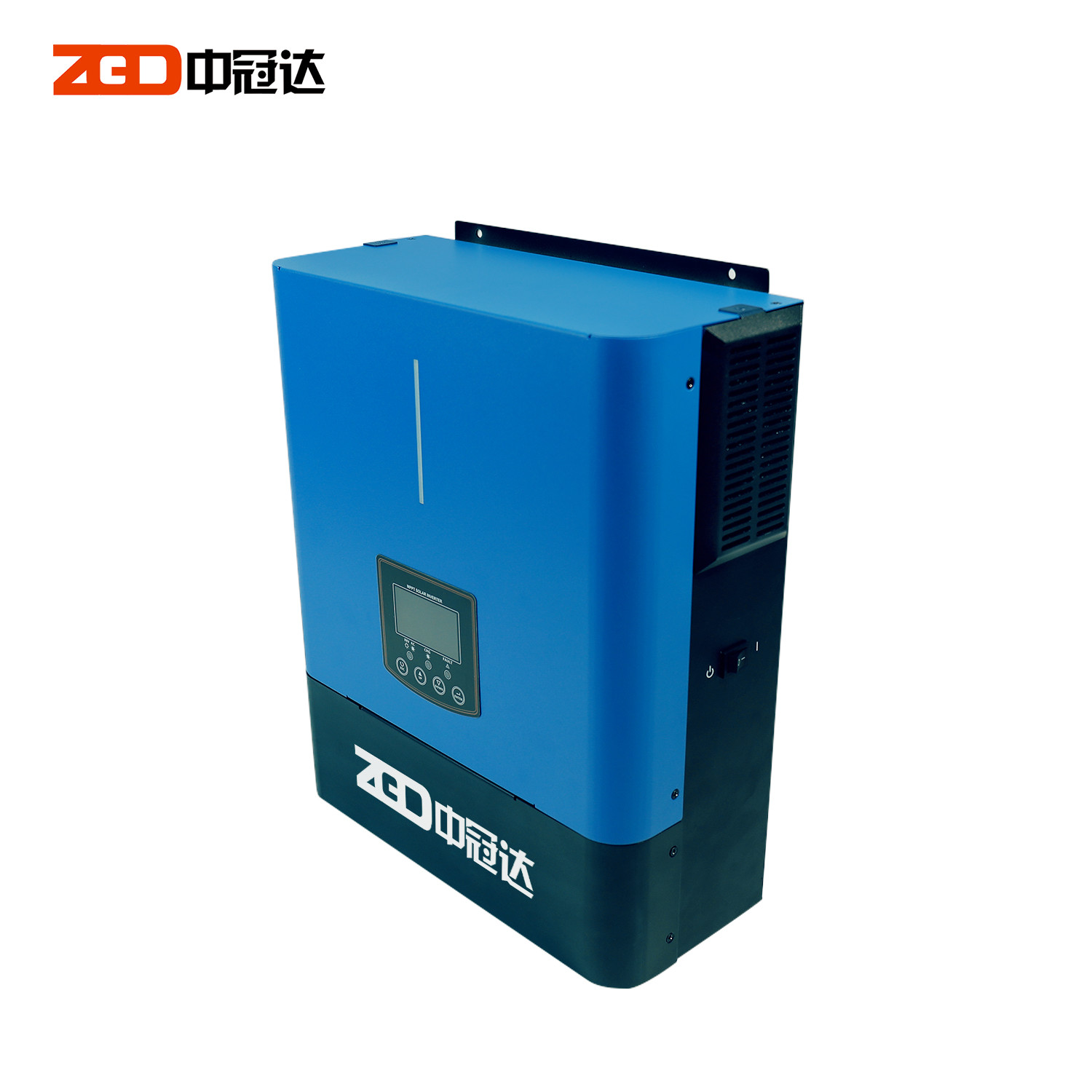

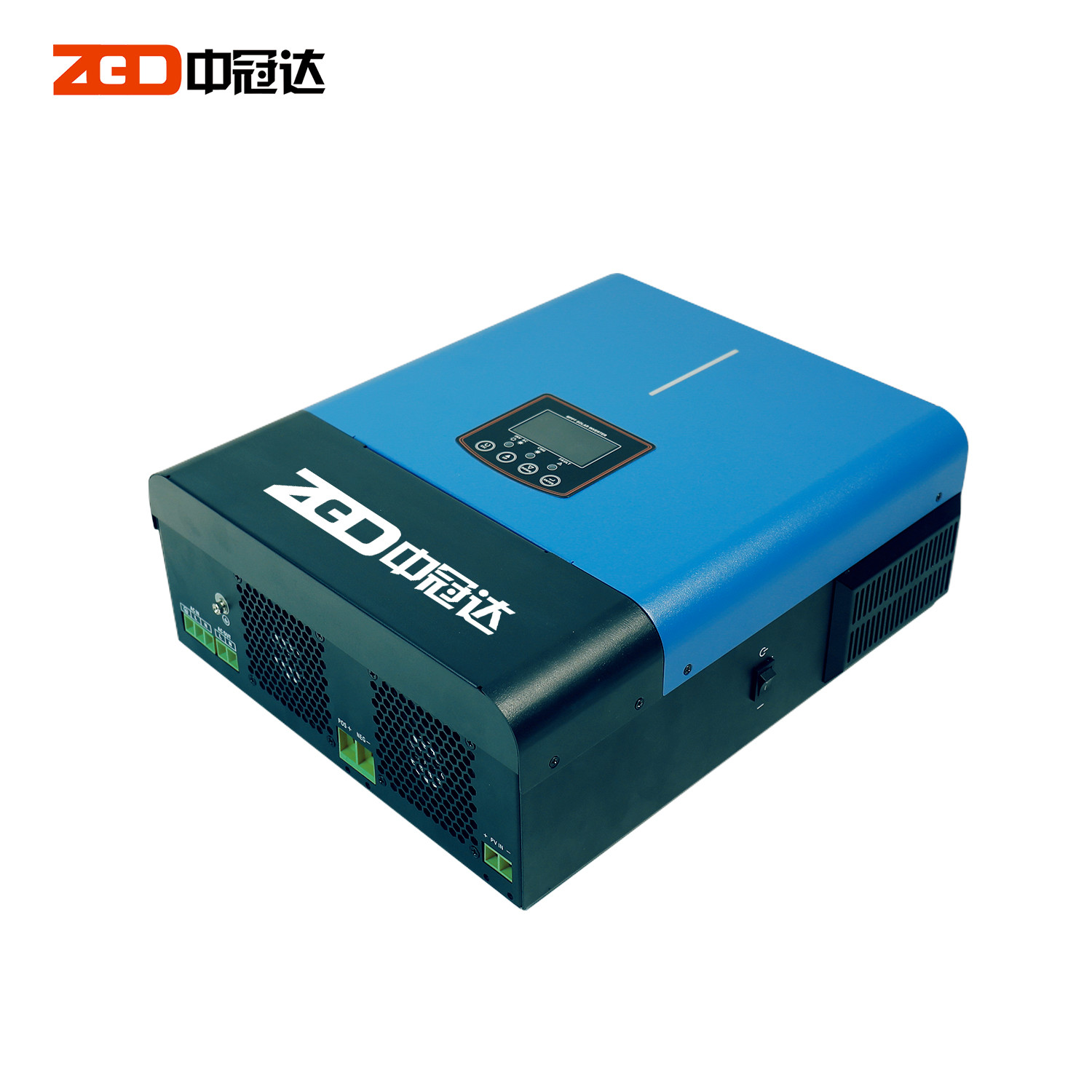

Built In PWM 5.2KW Solar Hybrid Inverter , Pure Sine Wave Solar Home Inverter Images
